Rail Cyclone 2

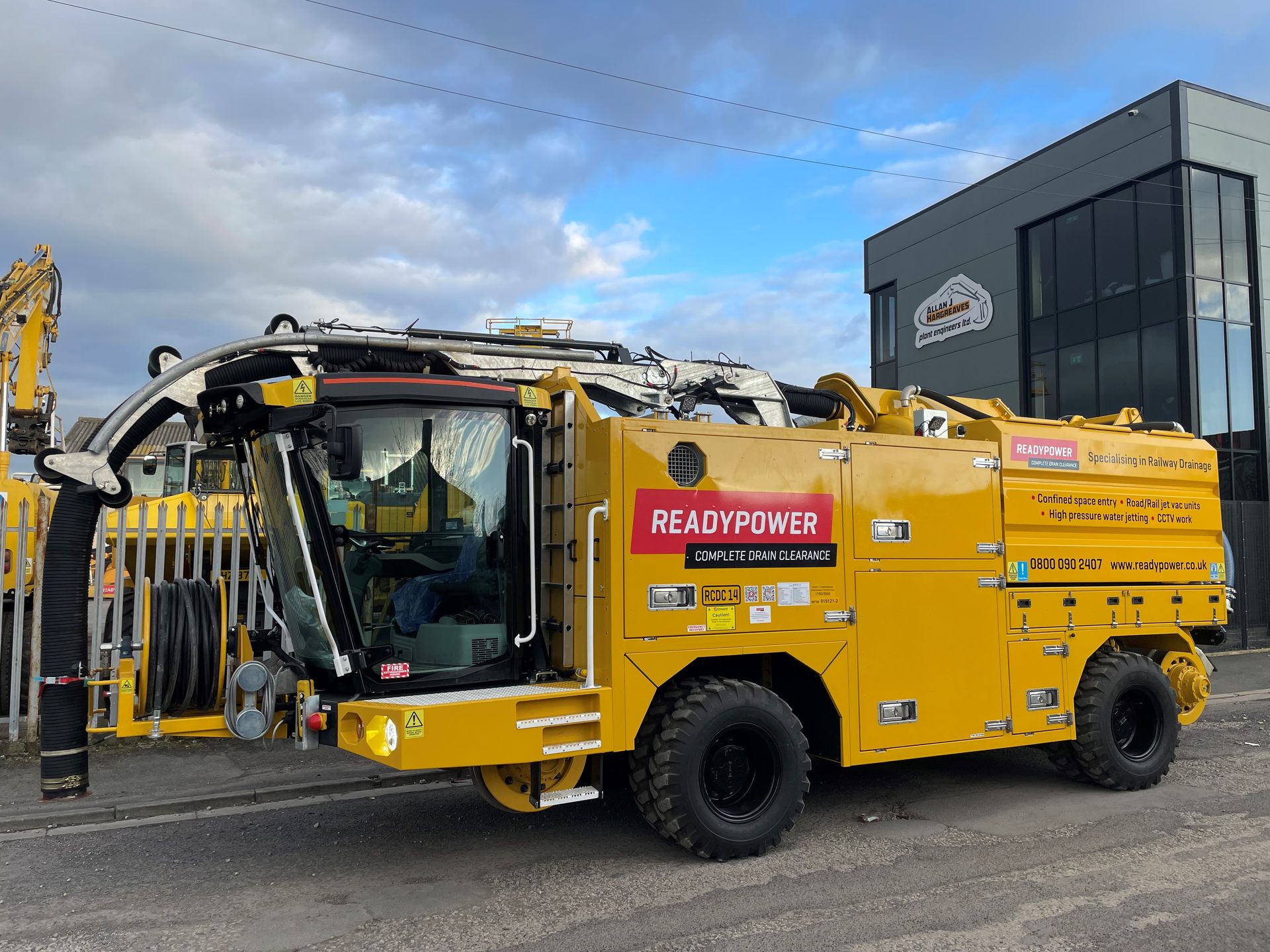

Our first AJH machine, the Rail Cyclone 2 is a jetting, suction and drainage truck capable of effectively clearing drainage systems on the rail network with its high suction capacity, it can easily clear ballast and handle wet bed situations.

Enquire Here

The Jet Vac Rail machines capabilities are unrivalled, designed from the ground up by our skilled design team with our customers in mind we ensured our Jet Vac was equipped and spec'd to carry out any and all jetting, suction and drainage tasks required. This machine is not a conversion from a truck or other vehicle, it has been specifically developed for the suitability to this type of work, a Rail Roader rather than a Road Railer.  With high capacity storage for both debris and water, the Jet Vac can handle large tasks without the need for additional machinery for more efficient operations. Fitted with a Stage V diesel engine the Vactor truck is economical, producing minimal pollutants and its 50 HP emergency back up engine ensures it is never left stranded. Fitted with many quality of life features for improved operator efficiency and accuracy the Jet Vac suction hose can be controlled remotely.


Engine Power
 250 kW / 340 HP @
Operating Weight
 27.2 T
Max Travelling Speed
 16 mph
Max Working Speed
 4 mph
Max Travelling Cant
 200 mm
Max Working Cant
 150 mm
Max Working Gradient
 1:25
Max Service Braked Towed Load
 N/A
Max On/Off Track Gradient
 1:25
Max On/Off Track Cant
 150 mm
May Work Under LIVE Overhead Lines
 NO
May Travel Under LIVE Overhead Lines
 YES
May On/Off Track Under Live OLE
 NO
May Travel On LIVE3 or 4 Rail Lines
 NO
May Be Used On Isolated 3 Or 4 Rail Systems
 YES
May Be Used Adjacent To Running Line
 NO

Plant Gauge

The AJH Rail Cyclone truck is plant gauge compliant when in travel mode.


1.     Auto Refuelling System
2.    50 HP Diesel Emergency Recovery  Engine
3.    28 GPM @ 2000 PSI Jetting Capability


4.   5000 CFM Air Moving Suction
5.   4500 kg Water Carrying
6.   4500 kg Debris Tank

Cab Interior

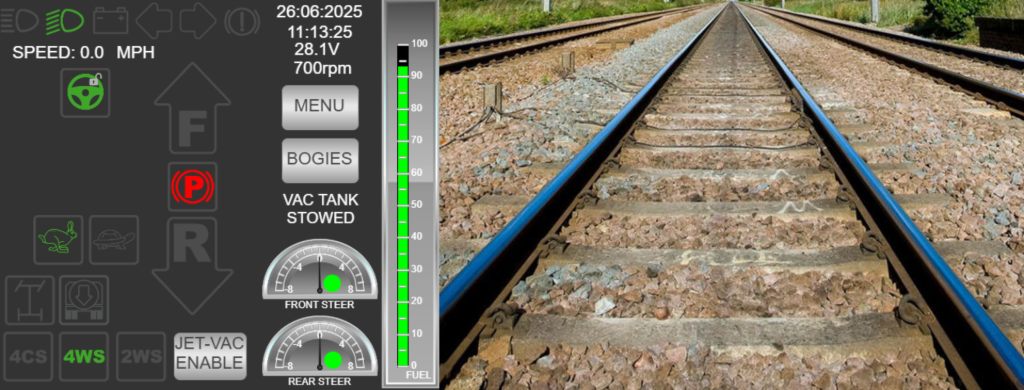

The Cab has been designed with operator visibility in mind, combined with a simple to use 12 inch touch screen display complete control of the machine is at your fingertips. The cabin is also equipped with air conditioning, category 4 filtration system, Bluetooth sound system, a fridge and a passenger seat.

Hydrostatic

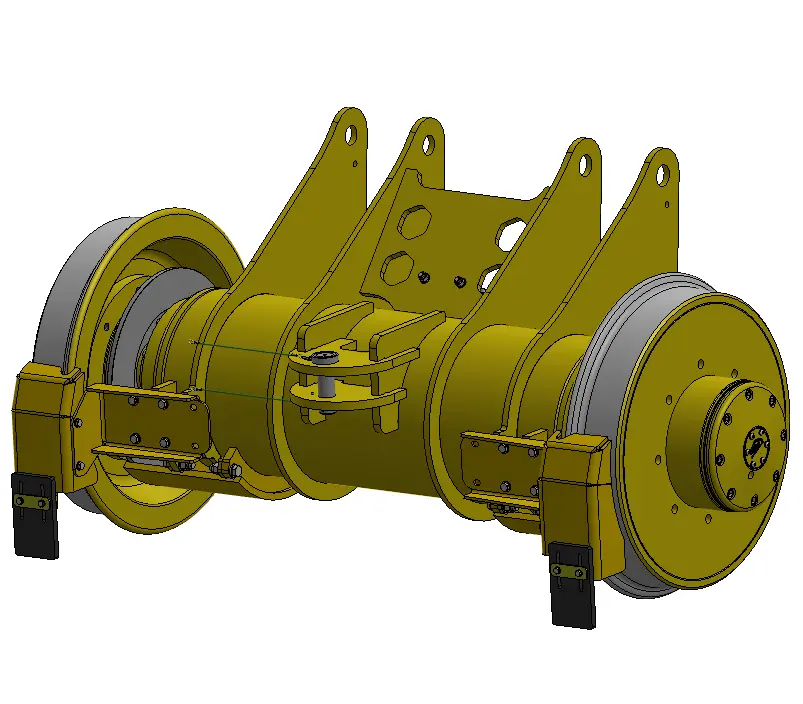

The Hydrostatic drive system uses bent axis piston motors to power the wheel drives, this allows both maximum torque and high speeds to be delivered when needed. Fitted with failsafe parking brakes and disc service brakes give excellent all round control.

User selectable modes allow tuning of the system when travelling or fine control is required.

Also equipped with an innovative drive disconnect system in case of failure allowing easy recovery by towing the machine.
