Liebherr 920 rail
Compliant with Stage V emissions regulations the Liebherr R920 is a rail conversion combined with AJH's hydrostatic rail axles and an integrated RCI safety system making it the ultimate lifting machine.

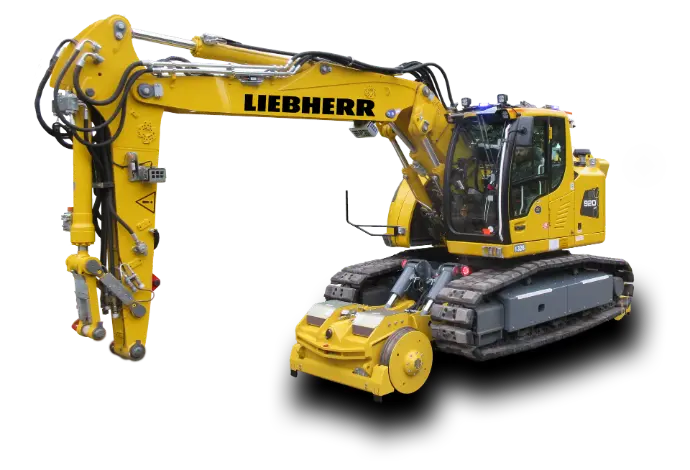

Liebherr 920 Rail
Our conversion of the Liebherr R920 culminates in the ultimate heavy lifting machine. Available for both UK (standard gauge) and Irish rail (broad gauge) or both UK and Irish gauge with our dual gauge axle option. Liebherr's superb build quality means longer lifespan of components and an automatic centralised lubrication system means reliability has been built into the machine reducing maintenance and improving efficiency. Panoramic visibility and a built in camera system along with an RCI system prevents the machine from exceeding its limits and results in a safer working environment for both the operator and surrounding workers.
Engine Power 150 HP / 110 kW
Operating Weight 32 T / 32,000 kg
S.W.L BP 10 T / 10,000 kg
ALP 7.5 T / 7500 kg
Gauge Plant

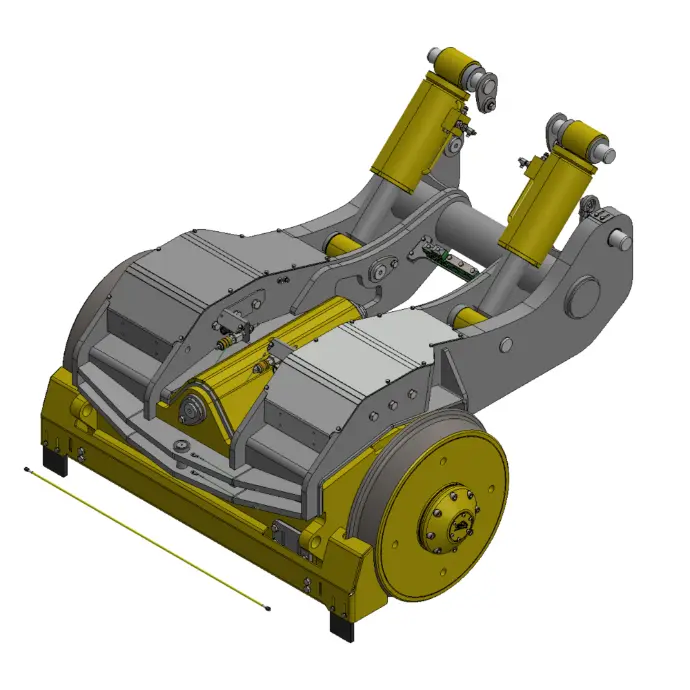

Hydrostatic Drive
Our unique hydrostatic drive solution uses a centrally mounted gearbox, providing superior traction and braking. This design also reduces flange wear and improves handling in curves. The stub axle system keeps the wheel loads independent of the drive loads, maximising lifespan and providing a much more reliable solution than traditional wheel motors.
User-selectable drive modes for work, travel and creep allow the machines to be adapted to different operating conditions, maximising productivity and reducing operator workload.

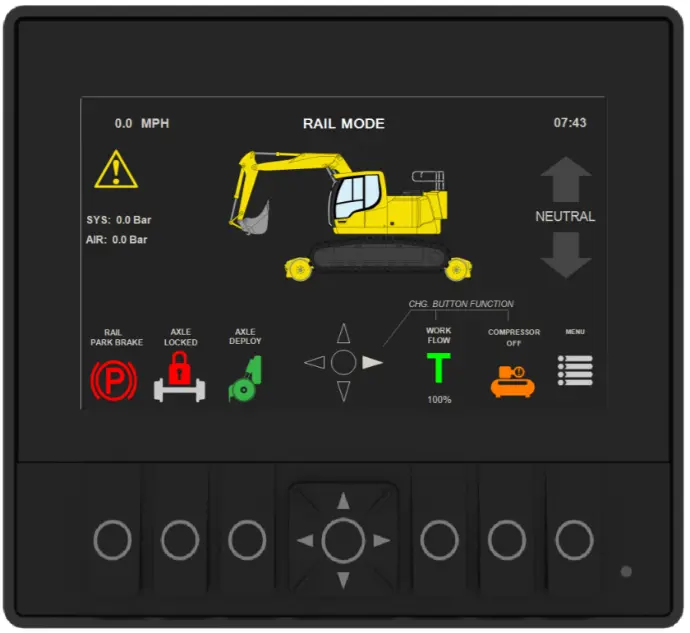

Control Systems
AJH's control system utilises an IFM visual display which can be programmed to control multiple features of the machine.
Work Modes
User-selectable modes allow tuning of the system when travelling, working or fine control is required.
Bucket Diverter
Allows the user to seamlessly control hydraulic diversion for different machine attachments.
Trailer Air Brake
The compressor and brake control system is seamlessly managed to ensure optimal performance and minimise power consumption when operating air-brake trailers.
Control Systems
Steering Locks
Our machines are fitted with a steering lock safety system to prevent the steering of the road axles when the rail are engaged keeping the machine within gauge.

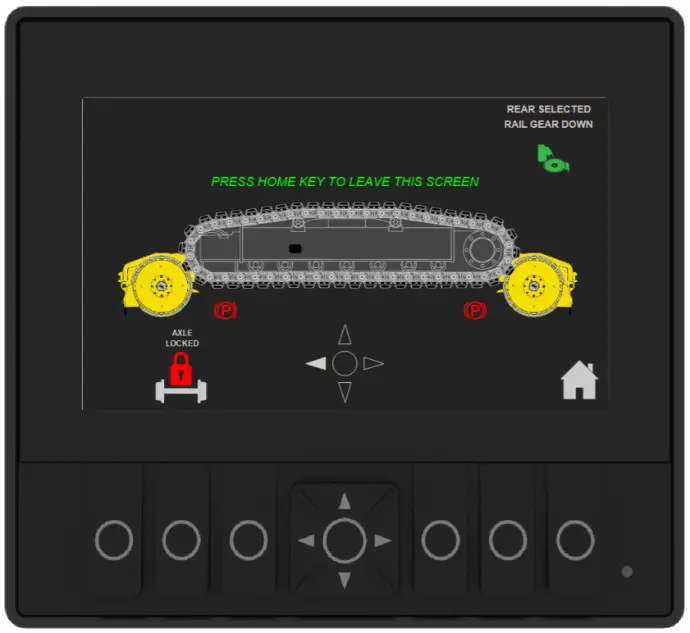

Rail Axle Deployment
Through the control system the rail axles can be deployed induvidually for complete control.
Rail Axle Brake Test
For improved confidence, our safety system comes available with a brake test function when working on rail (Only available for hydrostatic rail axles)
InTeEx
The InTeEx Rail Rated Capacity Indicator (RCI) System is a cutting-edge safety solution explicitly designed for road-rail excavators, ensuring safe and efficient lifting operations in railway environments. This system provides real-time monitoring of load capacities, machine stability, and operational parameters, preventing overloading and reducing the risk of tipping or structural strain. With an intuitive interface, the InTeEx Rail RCI system delivers precise weight calculations and audible and visual alerts when approaching operational limits. Its seamless integration with the machine’s hydraulics allows for automatic intervention, ensuring compliance with industry safety standards and Network Rail regulations. Designed for reliability in demanding rail applications, the InTeEx Rail RCI enhances operator confidence and overall project safety.
GKD
The GKD Rail Rated Capacity Indicator (RCI) System is an advanced safety and control solution designed to enhance the operational efficiency and security of rail-based excavators. This system continuously monitors load weights, machine stability, and operational limits to prevent overloading and unsafe lifting conditions. With real-time data feedback, the GKD RCI provides operators with precise, on-screen alerts and automatic intervention if safety thresholds are exceeded. It integrates seamlessly with the excavator’s hydraulic and electronic systems, ensuring compliance with industry regulations and minimising the risk of accidents. The system is crucial for ensuring optimal performance in railway maintenance, trackside lifting, and infrastructure projects, providing peace of mind to operators and project managers alike.

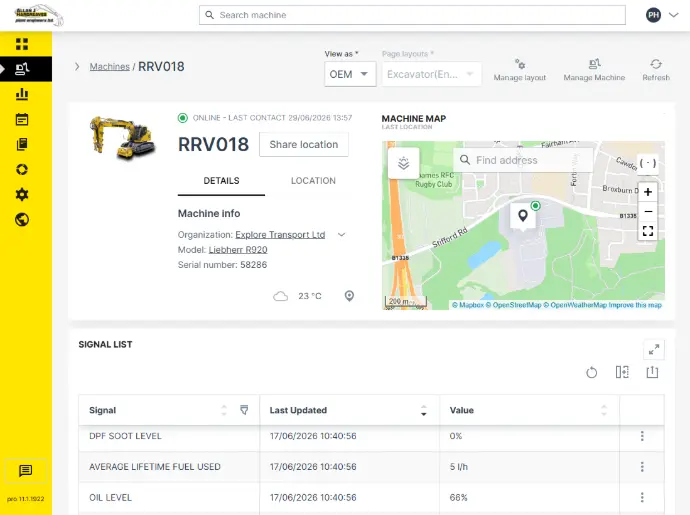

IoT Portal
We can equip your machines with our IoT suite, giving you access to a powerful online portal packed with real-time insight into your fleet. View live GPS location, set up Geo leashes to define operational boundaries, and record machine-specific data such as fuel usage and error codes. For even greater visibility, add-on health monitoring equipment enables predictive maintenance functionality — identifying potential issues before they become costly failures. All of this data can be leveraged to reduce operating costs, minimise downtime, and improve the long-term reliability of your machinery.

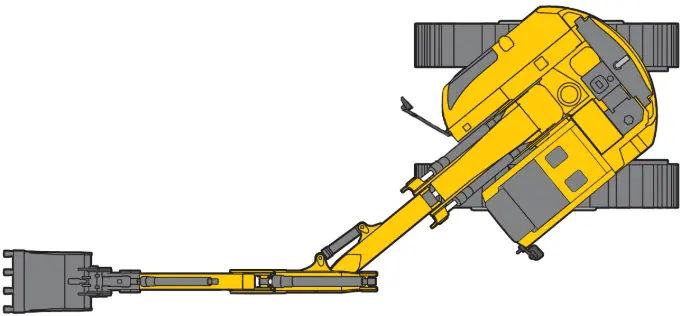

Offset Boom
The 920 rail offset boom configuration provides enhanced reach and flexibility by shifting the boom laterally from the machine’s centre line, allowing operators to work closer to walls, foundations, and tight excavation boundaries without constantly repositioning the unit. This offset geometry improves visibility, enables more precise digging in restricted spaces, and supports efficient trenching or grading alongside obstacles. It’s a practical option for contractors who need controlled, side‑aligned excavation where a standard boom layout would limit access.
Compliance
Allan J Hargreaves Plant Engineers Ltd (AJH) ensures that all its road-rail vehicles are fully customisable and certified for rail use in compliance with UK, Irish, or EU regulations. Founded in 1983, AJH specialises in the design, manufacture, upgrade, and maintenance of rail-road machinery and associated equipment, adhering to standards such as RIS-1530-PLT. This commitment ensures their machinery meets stringent industry standards, providing clients with reliable, compliant solutions for rail operations.
Engineering Conformance Certificate
At AJH, we have the facilities to carry out extensive machine testing, our skilled engineers are able to calibrate machines in order to ensure maximum safety whilst ensuring machine envelope requirements are met. We carry out ECC certification for your machines through our trusted partners and provide a seamless end-to-end service. We provide compliant works to RIS-1530-PLT, I-PLM-5001 (Standard for Irish Rail), BS EN 15746 and CE / UKCA Marking.
Machine Applications for the Liebherr R920 Rail
The Liebherr R920 Rail is a powerful, highly stable tracked Road‑Rail Vehicle designed for demanding rail maintenance, renewal and construction operations. Its exceptional hydraulic performance, robust undercarriage and wide attachment compatibility make it ideal for heavy on‑track work where strength, precision and reliability are essential.
Rail Maintenance & Renewal Operations
The R920 Rail is engineered for high‑duty rail tasks, offering the lifting strength and stability required for complex infrastructure work.
- Track maintenance — Sleeper handling, ballast excavation, drainage works and general track repairs.
- Rail renewal — Removing and installing rail sections, supporting renewal trains and handling heavy components with confidence.
- Lineside maintenance — Vegetation clearance, embankment shaping and ditching operations.
- Switch & crossing work — Precision lifting and placement of S&C components.
Its tracked configuration provides superior stability, making it ideal for heavy lifting and high‑precision rail tasks.
Construction & Civil Engineering Applications
With its strong hydraulic output and rugged build, the R920 Rail is equally capable in construction and civil engineering environments.
- Earthworks — Deep excavation, trenching, grading and formation works.
- Material handling — Lifting pipes, beams, concrete elements and structural materials.
- Utility installation — Cable laying, duct installation, drainage construction and foundation support.
- Site preparation — Clearing, levelling and demolition support.
Its tracked mobility provides excellent traction and stability on uneven or soft ground, making it ideal for challenging civil works.
Specialist Road‑Rail (RRV) Operations
The Liebherr R920 Rail is designed for seamless rail operation, offering powerful performance for demanding on‑track tasks.
- Heavy‑duty RRV operations — Ideal for tasks requiring high lifting capacity and strong hydraulic output.
- Precision positioning — Smooth, controlled movements for accurate placement of rail components.
- Support for major rail projects — Perfect for renewal sites, track upgrades and infrastructure installations.
- High‑stability lifting — Tracked undercarriage ensures maximum stability during heavy lifts.
Its strength and stability make it a preferred choice for contractors working on large‑scale rail projects.
Attachment Compatibility & Multi‑Function Use
The R920 Rail supports a wide range of attachments, enabling it to adapt to multiple operational roles.
- Tilt rotators — Precision grading and shaping.
- Hydraulic grabs — Sleeper and material handling.
- Clamshell buckets — Ballast and bulk material work.
- Rail handling tools — Safe rail lifting and placement.
- Vegetation heads — Lineside clearance and brushing.
This versatility allows the R920 Rail to switch tasks quickly, improving productivity across multi‑discipline rail projects.
Digital & Operational Integration
The Liebherr R920 Rail can be equipped with advanced digital systems to enhance operational oversight and fleet management.
- GPS tracking — Real‑time location monitoring across the rail network.
- Geo‑fencing — Controlled operational zones for safety and compliance.
- Telematics — Monitoring performance, utilisation and maintenance needs.
- Predictive maintenance — Reducing downtime and extending machine life.
These features support efficient fleet management and long‑term reliability.
Why the Liebherr R920 Rail Stands Out
- Exceptional hydraulic strength and stability
- Ideal for heavy‑duty rail maintenance and renewal
- Superior traction and balance from tracked undercarriage
- Wide attachment compatibility
- Proven reliability across UK rail operations
- Perfect for large‑scale infrastructure projects
Planning a heavy‑duty rail or civil engineering project?
The Liebherr R920 Rail is available for purchase with full customisation options, ensuring it meets the demands of your rail or civil engineering project.
