Komatsu Rail Rascal
The compact rounded tail end makes the Rail Rascal ideal for carrying out work in confined spaces, reducing the chances of rear collisions, the operator can focus on the task at hand.
Komatsu Rail Rascal

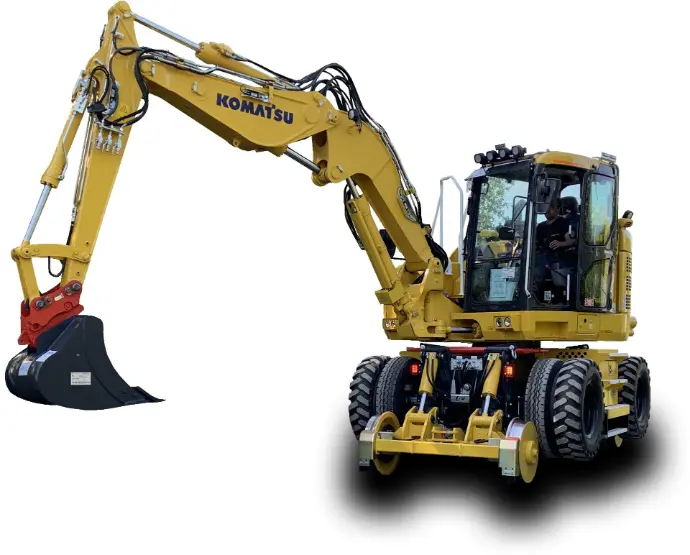

The Komatsu PW138MR-11 is a versatile, mid-sized wheel excavator designed for both road and rail applications. Fitted with a EU Stage V engine. The Rail Rascal is productive and efficient with its ultra-low emissions and comes with quick maintenance features where the oil filter, oil dipstick, coolant reserve tank, fuel filter and air cleaner are all within easy reach. In addition to the rail axles, we've integrated an RCI system to ensure the machine works to the maximum of its capabilities which ensures the operator is safe whilst working. Its compact size makes the Rail Rascal a preferred choice when working in confined spaces, due to its 3 steering modes including crab and 4-wheel steer. Its offset boom capabilities also allow it to undertake drainage excavation works on the railway.
Engine Power 97.3 HP / 72.6 kW
Operating Weight 18.75 T / 18,750 kg
S.W.L ALP 5 T / 5,000 kg
QH 5 T / 5,000 kg
Gauge Plant
Friction Drive

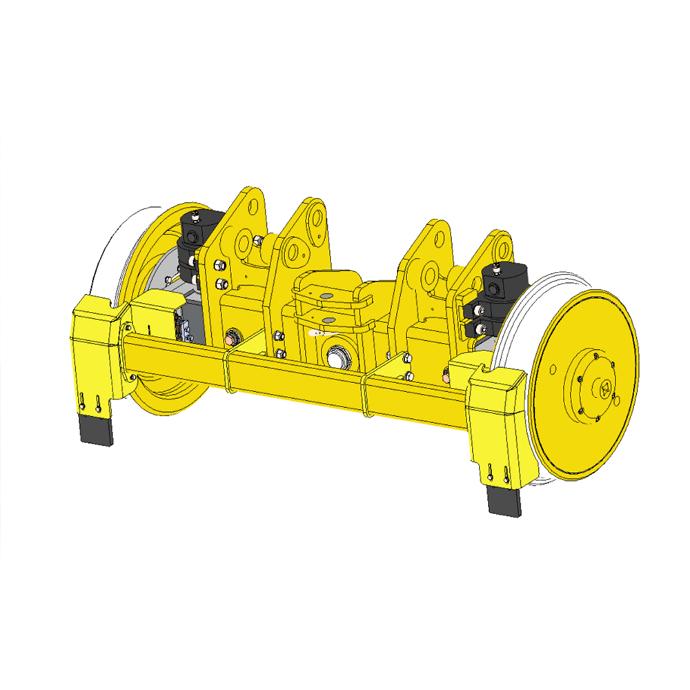

The Rail Rascal is fitted with our friction drive rail axles which are driven by the tyres. The axles have direct rail wheel braking integrated for optimum stopping performance via independant park and service brake calipers. The axles have been designed with maintenance tasks in mind, minimising servicing task durations and frequency.
Control Systems
AJH's control system utilises an IFM visual display which can be programmed to control multiple features of the machine.
Work Modes
User-selectable modes allow tuning of the system when travelling, working or fine control is required.
Bucket Diverter
Allows the user to seamlessly control hydraulic diversion for different machine attachments.
Trailer Air Brake
The compressor and brake control system is seamlessly managed to ensure optimal performance and minimise power consumption when operating air-brake trailers.
Control Systems
Steering Locks
Our machines are fitted with a steering lock safety system to prevent the steering of the road axles when the rails are engaged, keeping the machine within gauge.
Rail Axle Deployment
Through the control system, the rail axles can be deployed individually for complete control.
Rail Axle Brake Test
For improved confidence, our safety system is available with a brake test function when working on rail (Only available for hydrostatic rail axles)
InTeEx
The InTeEx Rail Rated Capacity Indicator (RCI) System is a cutting-edge safety solution explicitly designed for road-rail excavators, ensuring safe and efficient lifting operations in railway environments. This system provides real-time monitoring of load capacities, machine stability, and operational parameters, preventing overloading and reducing the risk of tipping or structural strain. With an intuitive interface, the InTeEx Rail RCI system delivers precise weight calculations and audible and visual alerts when approaching operational limits. Its seamless integration with the machine’s hydraulics allows for automatic intervention, ensuring compliance with industry safety standards and Network Rail regulations. Designed for reliability in demanding rail applications, the InTeEx Rail RCI enhances operator confidence and overall project safety.
GKD
The GKD Rail Rated Capacity Indicator (RCI) System is an advanced safety and control solution designed to enhance the operational efficiency and security of rail-based excavators. This system continuously monitors load weights, machine stability, and operational limits to prevent overloading and unsafe lifting conditions. With real-time data feedback, the GKD RCI provides operators with precise, on-screen alerts and automatic intervention if safety thresholds are exceeded. It integrates seamlessly with the excavator’s hydraulic and electronic systems, ensuring compliance with industry regulations and minimising the risk of accidents. The system is crucial for ensuring optimal performance in railway maintenance, trackside lifting, and infrastructure projects, providing peace of mind to operators and project managers alike.
Compliance
Allan J Hargreaves Plant Engineers Ltd (AJH) ensures that all its road-rail vehicles are fully customisable and certified for rail use in compliance with UK, Irish, or EU regulations. Founded in 1983, AJH specialises in the design, manufacture, upgrade, and maintenance of rail-road machinery and associated equipment, adhering to standards such as RIS-1530-PLT. This commitment ensures their machinery meets stringent industry standards, providing clients with reliable, compliant solutions for rail operations.
Engineering Conformance Certificate
At AJH, we have the facilities to carry out extensive machine testing, our skilled engineers are able to calibrate machines in order to ensure maximum safety whilst ensuring machine envelope requirements are met. We carry out ECC certification for your machines through our trusted partners and provide a seamless end-to-end service. We provide compliant works to RIS-1530-PLT, I-PLM-5001 (Standard for Irish Rail), BS EN 15746 and CE / UKCA Marking.
Machine Applications for the Rail Rascal
The Rail Rascal is a compact, highly manoeuvrable Road‑Rail Vehicle designed to deliver exceptional versatility across rail maintenance, inspection, and construction environments. Its lightweight design, rapid deployment capability, and compatibility with a wide range of attachments make it an ideal solution for worksites requiring agility, precision, and reliable on‑track performance.
Rail Maintenance & Inspection Operations
The Rail Rascal is engineered for fast, efficient support across day‑to‑day rail maintenance tasks. Its compact footprint allows it to operate in confined areas where larger RRVs cannot access.
Key applications include:
- Track inspection — Ideal for visual checks, fault identification, and rapid response assessments.
- Light maintenance tasks — Supporting small‑scale repairs, bolt tightening, component adjustments, and lineside works.
- Vegetation control — When paired with cutting or brushing attachments.
- Drainage and culvert access — Perfect for navigating tight or restricted areas.
Its ability to mobilise quickly makes it a valuable asset for maintenance teams working across multiple locations in a single shift.
Construction & Support Applications
Despite its compact size, the Rail Rascal provides impressive capability for construction support tasks:
- Material transport — Moving tools, components, and consumables along the track.
- Site preparation — Assisting with clearing, levelling, and small excavation tasks when equipped with the appropriate attachments.
- Utility installation — Supporting cable laying, duct installation, and minor civil works.
- Access support — Providing a stable platform for personnel working on lineside structures.
Its agility makes it ideal for construction sites where space is limited or where larger machines would disrupt operations.
Specialist Road‑Rail (RRV) Operations
The Rail Rascal is designed for seamless road‑to‑rail transition, enabling rapid deployment and flexible movement along the track.
Specialist applications include:
- RRV rapid response — Quickly reaching fault locations or emergency worksites.
- Confined‑space operation — Navigating tunnels, narrow corridors, and restricted access zones.
- Precision positioning — Ideal for tasks requiring fine control and accurate placement.
- Support for larger RRVs — Transporting tools, assisting with setup, and providing supplementary capability.
Its lightweight design reduces track loading, making it suitable for sensitive infrastructure or temporary worksites.
Attachment Compatibility & Multi‑Function Use
The Rail Rascal supports a wide range of attachments, enabling it to adapt to multiple operational roles:
- Hydraulic tools — Breakers, cutters, and compact work tools.
- Brushes and vegetation heads — For lineside clearance and brushing.
- Material handling attachments — Small grabs, clamps, and lifting aids.
- Inspection equipment — Cameras, sensors, and measurement tools.
This versatility allows the Rail Rascal to switch roles quickly, improving productivity across multi‑discipline rail projects.
Digital & Operational Integration
The Rail Rascal can be integrated with modern fleet and operational systems to enhance oversight and efficiency:
- GPS tracking — Real‑time location monitoring across the rail network.
- Geo‑fencing — Controlled operational zones for safety and compliance.
- Telematics — Monitoring performance, utilisation, and maintenance needs.
- Shift‑based deployment — Ideal for maintenance and construction shifts requiring flexible support.
These features help operators maintain visibility, improve safety, and optimise machine utilisation.
Why the Rail Rascal Stands Out
- Compact and highly manoeuvrable
- Rapid road‑to‑rail deployment
- Ideal for confined or restricted access areas
- Versatile attachment compatibility
- Perfect for inspection, maintenance, and support roles
- Proven reliability across UK rail operations
Looking for compact, agile on‑track capability?
The Rail Rascal is ideal for inspection, maintenance and confined‑area operations. Get in touch now to discuss specifications, and attachments availability.
