Komatsu Terrarailer 320
Ideal for job sites with limited space or in urban areas, the Terrarailer 320 is our heaviest-lifting rail excavator, suitable for all heavy-lifting operations.
Komatsu Terrarailer 320

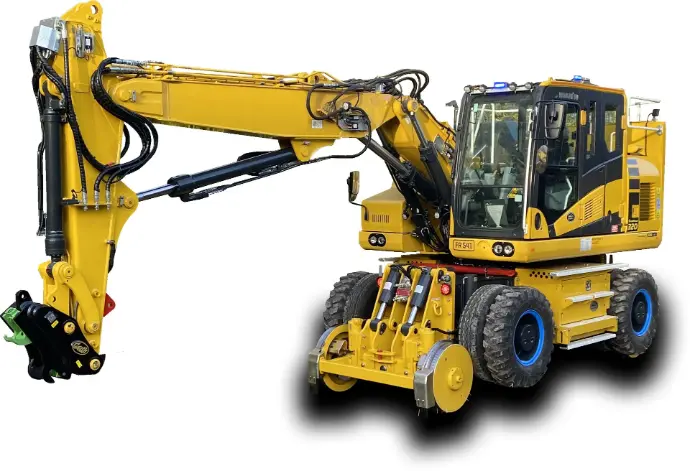

Our new Komatsu PW160-11 rail excavator, "Terrarailer 320," is fitted with a friction-drive type 9b rail axle and a GKD space guard.
Following the success of the Komatsu PW160, the 320 Terrarailer has been refined for heavy lifting operations. Weighing in at 32T, combined with an underslung dipper configuration, uprated boom cylinders and optimised boom geometry, makes this specialised machine best in class.
With interchangeable dippers (5.5m & 2.1M), the machine can be easily adapted to the job in hand. Hydrostatic drive axle options are also available. Joystick steering, an integrated tool control system, allows the setting of flows and pressures for the auxiliary services with preset modes in the display for different attachments.
Engine Power 148 HP / 110 kW
Operating Weight 32 T / 32,000 kg
S.W.L LongBP 9 T / 9,000 kg
LongALP 8.5 T / 8,500 kg
Short BP 10 T / 10,000 kg
Short ALP 10 T / 10,000 kg
Gauge Plant

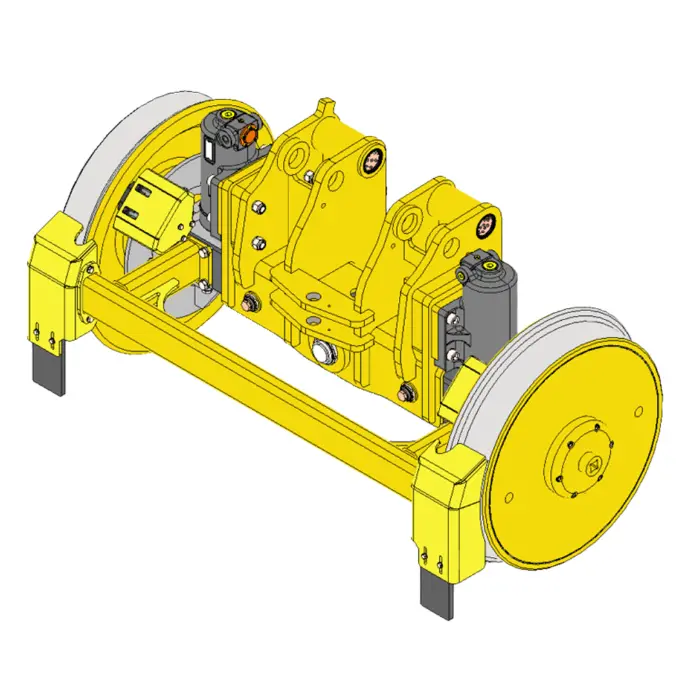

Hydrostatic Drive
For enhanced traction and braking, a hydrostatic drive solution is available. This system utilises a through-drive axle and a centrally mounted gearbox, offering superior handling of curves and minimising flange wear. The stub axle system keeps wheel loads independent of drive loads, maximising lifespan and reliability. Operators can select from various drive modes—work, travel, and creep—to adapt to different operating conditions, thereby increasing productivity and reducing workload.

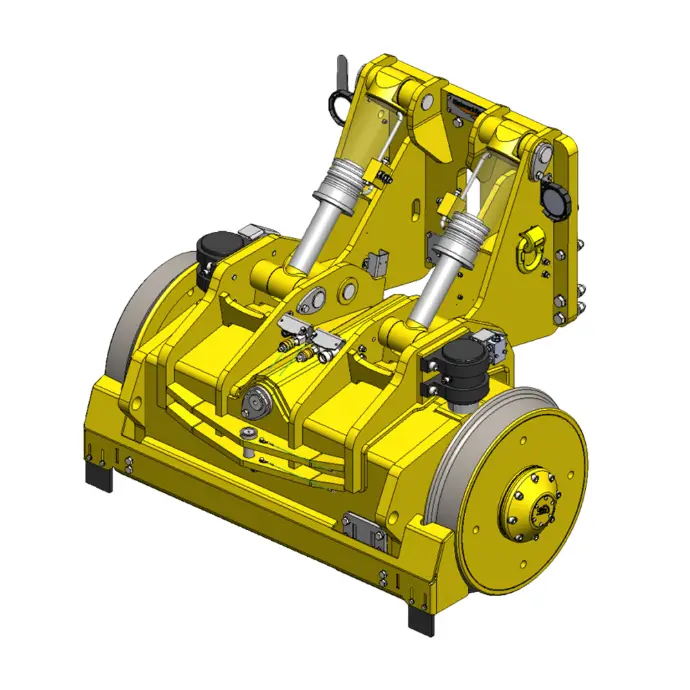

Friction Drive
The Rail Raider Mk2 is equipped with a friction drive type 9b rail axle, driven by the machine's tyres. This system features direct rail wheel braking, along with independent park and service brake callipers, ensuring optimal stopping performance. The design emphasises ease of maintenance, reducing service durations and frequency
Control Systems
AJH's control system utilises an IFM visual display which can be programmed to control multiple features of the machine.
Work Modes
User-selectable modes allow tuning of the system when travelling, working or fine control is required.
Bucket Diverter
Allows the user to seamlessly control hydraulic diversion for different machine attachments.
Trailer Air Brake
The compressor and brake control system is seamlessly managed to ensure optimal performance and minimise power consumption when operating air-brake trailers.
Control Systems
Steering Locks
Our machines are fitted with a steering lock safety system to prevent the steering of the road axles when the rails are engaged, keeping the machine within gauge.
Rail Axle Deployment
Through the control system, the rail axles can be deployed individually for complete control.
Rail Axle Brake Test
For improved confidence, our safety system is available with a brake test function when working on rail (Only available for hydrostatic rail axles)
InTeEx
The InTeEx Rail Rated Capacity Indicator (RCI) System is a cutting-edge safety solution explicitly designed for road-rail excavators, ensuring safe and efficient lifting operations in railway environments. This system provides real-time monitoring of load capacities, machine stability, and operational parameters, preventing overloading and reducing the risk of tipping or structural strain. With an intuitive interface, the InTeEx Rail RCI system delivers precise weight calculations and audible and visual alerts when approaching operational limits. Its seamless integration with the machine’s hydraulics allows for automatic intervention, ensuring compliance with industry safety standards and Network Rail regulations. Designed for reliability in demanding rail applications, the InTeEx Rail RCI enhances operator confidence and overall project safety.
GKD
The GKD Rail Rated Capacity Indicator (RCI) System is an advanced safety and control solution designed to enhance the operational efficiency and security of rail-based excavators. This system continuously monitors load weights, machine stability, and operational limits to prevent overloading and unsafe lifting conditions. With real-time data feedback, the GKD RCI provides operators with precise, on-screen alerts and automatic intervention if safety thresholds are exceeded. It integrates seamlessly with the excavator’s hydraulic and electronic systems, ensuring compliance with industry regulations and minimising the risk of accidents. The system is crucial for ensuring optimal performance in railway maintenance, trackside lifting, and infrastructure projects, providing peace of mind to operators and project managers alike.

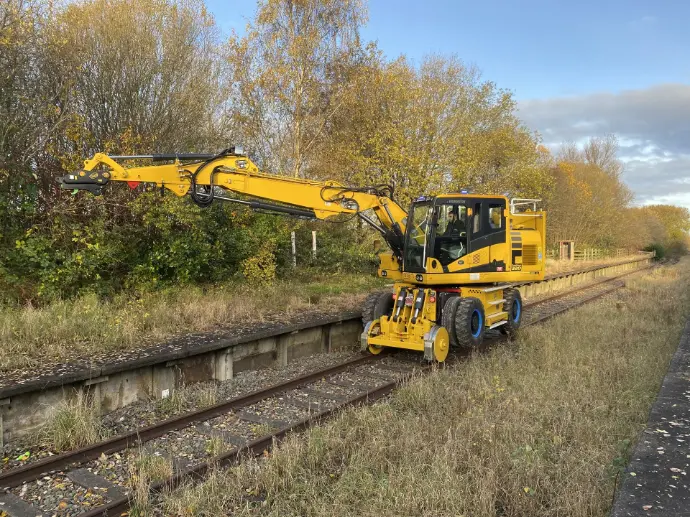

Short Dipper
The Terrarailer 320 short dipper (2.1 m) configuration is designed for precise digging and controlled operation in confined or detail‑focused work areas. With its reduced dipper length, the machine delivers quicker cycle times, improved breakout force, and tighter manoeuvrability—ideal for trenching, service work, and tasks where accuracy matters more than maximum reach. This shorter geometry also enhances stability when working close to the machine, giving operators confident, responsive performance in challenging site conditions.

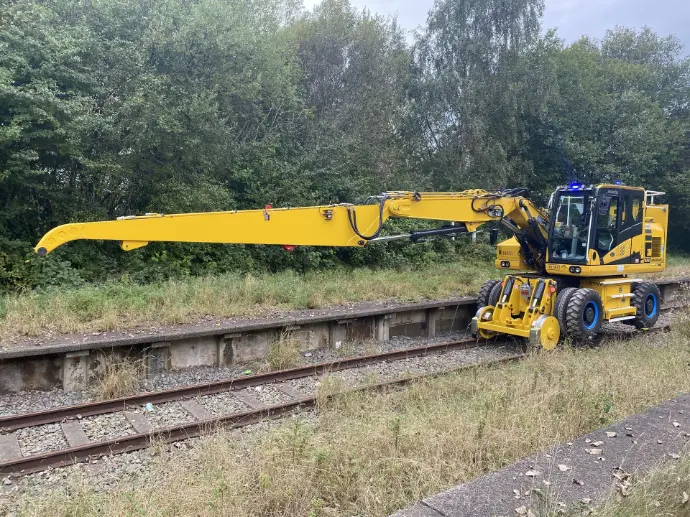

Long Dipper
The 5.5 m long‑reach dipper configuration on the Terrarailer 320 is built for extended excavation where maximum horizontal reach is essential. This longer dipper allows operators to work deeper into trenches, load trucks from a greater distance, and shape embankments or drainage channels without constantly repositioning the machine. While it sacrifices some breakout force compared with shorter dipper options, the added reach delivers exceptional coverage, efficiency, and versatility on wide or hard‑to‑access work areas.
Compliance
Allan J Hargreaves Plant Engineers Ltd (AJH) ensures that all its road-rail vehicles are fully customisable and certified for rail use in compliance with UK, Irish, or EU regulations. Founded in 1983, AJH specialises in the design, manufacture, upgrade, and maintenance of rail-road machinery and associated equipment, adhering to standards such as RIS-1530-PLT. This commitment ensures their machinery meets stringent industry standards, providing clients with reliable, compliant solutions for rail operations.
Engineering Conformance Certificate
At AJH, we have the facilities to carry out extensive machine testing, our skilled engineers are able to calibrate machines in order to ensure maximum safety whilst ensuring machine envelope requirements are met. We carry out ECC certification for your machines through our trusted partners and provide a seamless end-to-end service. We provide compliant works to RIS-1530-PLT, I-PLM-5001 (Standard for Irish Rail), BS EN 15746 and CE / UKCA Marking.
