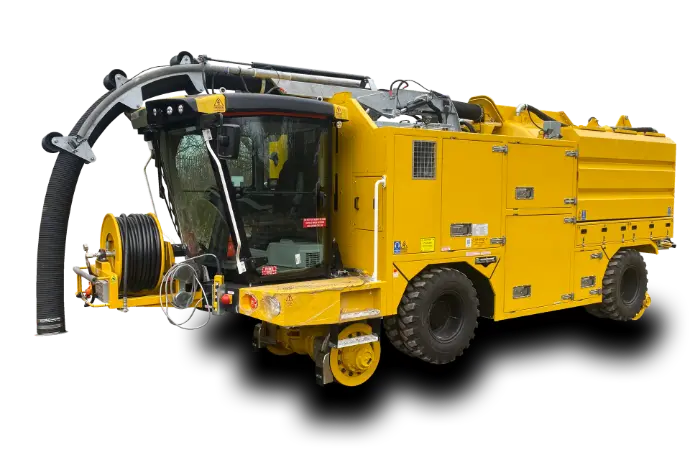

Rail Cyclone 2
Our first AJH machine, the Rail Cyclone 2 is a jetting, suction and drainage truck capable of effectively clearing drainage systems on the rail network with its high suction capacity, it can easily clear ballast and handle wet bed situations.
Rail Cyclone 2
The Rail Cyclone's capabilities are unrivalled, designed from the ground up by our skilled design team with our customers in mind, we ensured our Jet Vac was equipped and spec'd to carry out any jetting, suction and drainage tasks required. This machine is not a conversion from a truck or other vehicle; it has been specifically developed for the suitability to this type of work, a Rail Roader rather than a Road Railer. With high-capacity storage for both debris and water, the Jet Vac can handle large tasks without the need for additional machinery for more efficient operations. Fitted with a Stage V diesel engine, the Vactor truck is economical, producing minimal pollutants, and its 50 HP emergency backup engine ensures it is never left stranded. Fitted with many quality-of-life features for improved operator efficiency and accuracy, the Jet Vac suction hose can be controlled remotely.
Engine Power 340 HP / 250 kW
Operating Weight 27.2 T / 27,200 kg
Gauge Plant

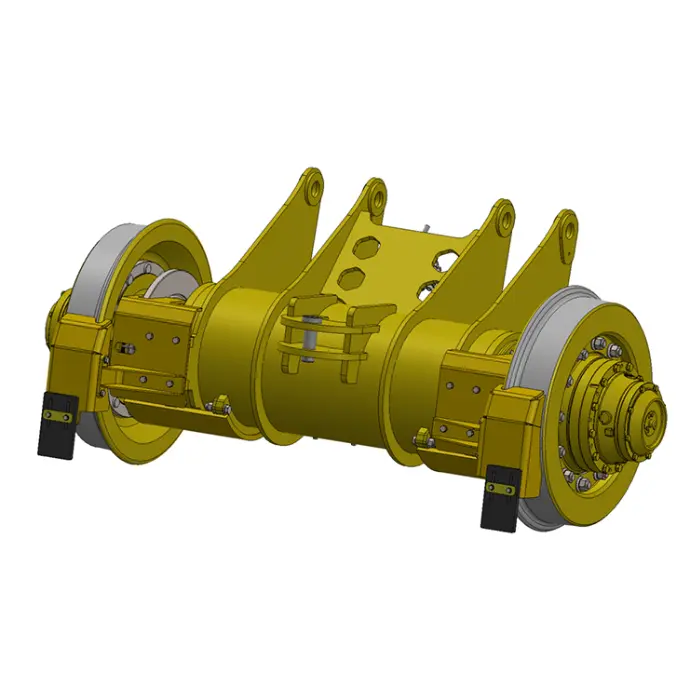

Hydrostatic Drive
The Hydrostatic drive system uses bent axis piston motors to power the wheel drives, this allows both maximum torque and high speeds to be delivered when needed. Fitted with failsafe parking brakes and disc service brakes give excellent all round control.
User selectable modes allow tuning of the system when travelling or fine control is required.
Also equipped with an innovative drive disconnect system in case of failure allowing easy recovery by towing the machine.
Control Systems

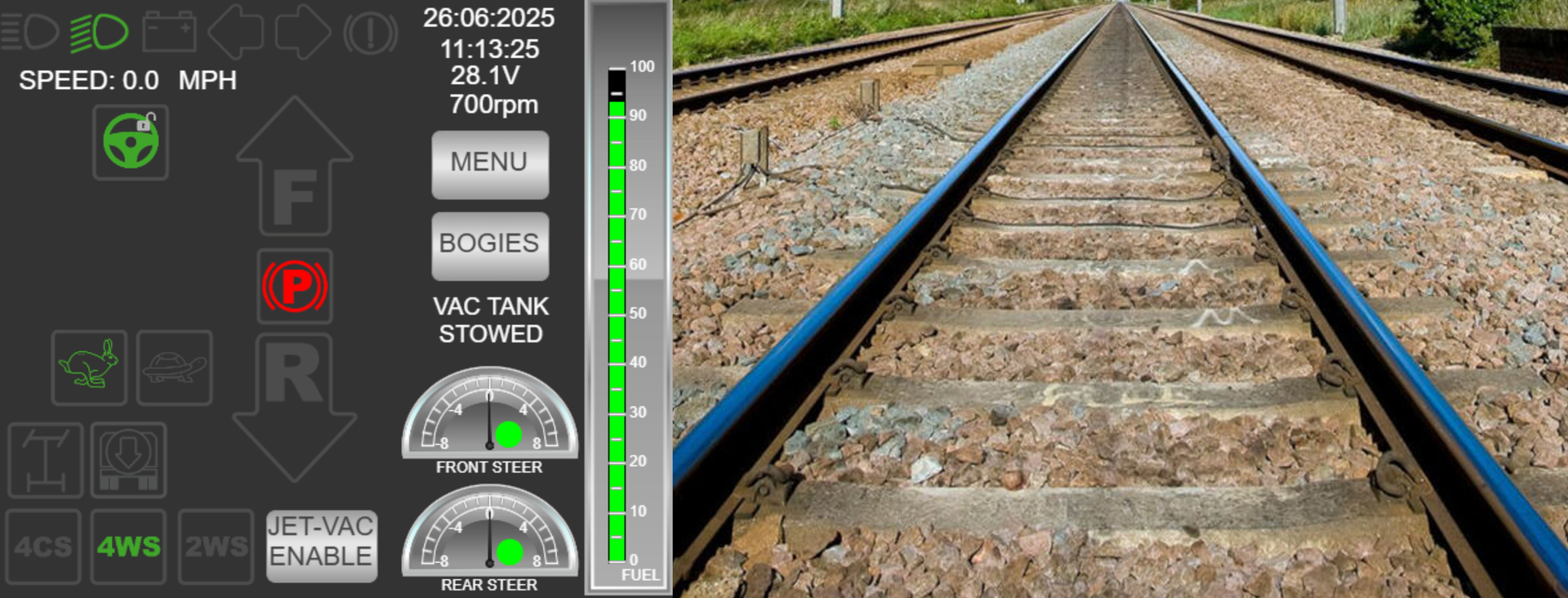

AJH's control system utilises an IFM visual display which can be programmed to control multiple features of the machine.
Work Modes
User-selectable modes allow tuning of the system when travelling, working or fine control is required.
Bucket Diverter
Allows the user to seamlessly control hydraulic diversion for different machine attachments.
Trailer Air Brake
The compressor and brake control system is seamlessly managed to ensure optimal performance and minimise power consumption when operating air-brake trailers.
Steering Locks
Our machines are fitted with a steering lock safety system to prevent the steering of the road axles when the rails are engaged, keeping the machine within gauge.
Rail Axle Deployment
Through the control system, the rail axles can be deployed individually for complete control.
Rail Axle Brake Test
For improved confidence, our safety system is available with a brake test function when working on rail (Only available for hydrostatic rail axles)

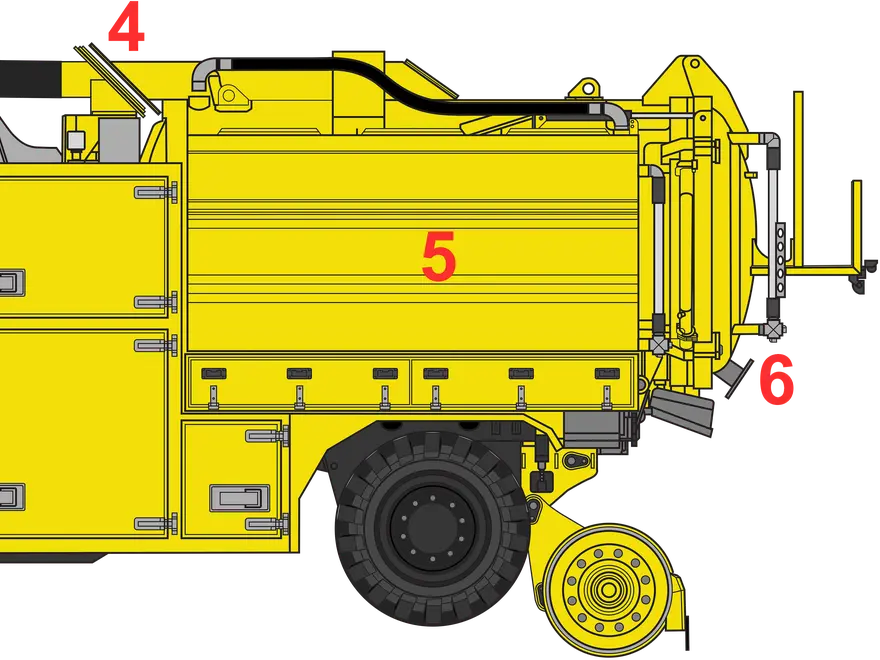

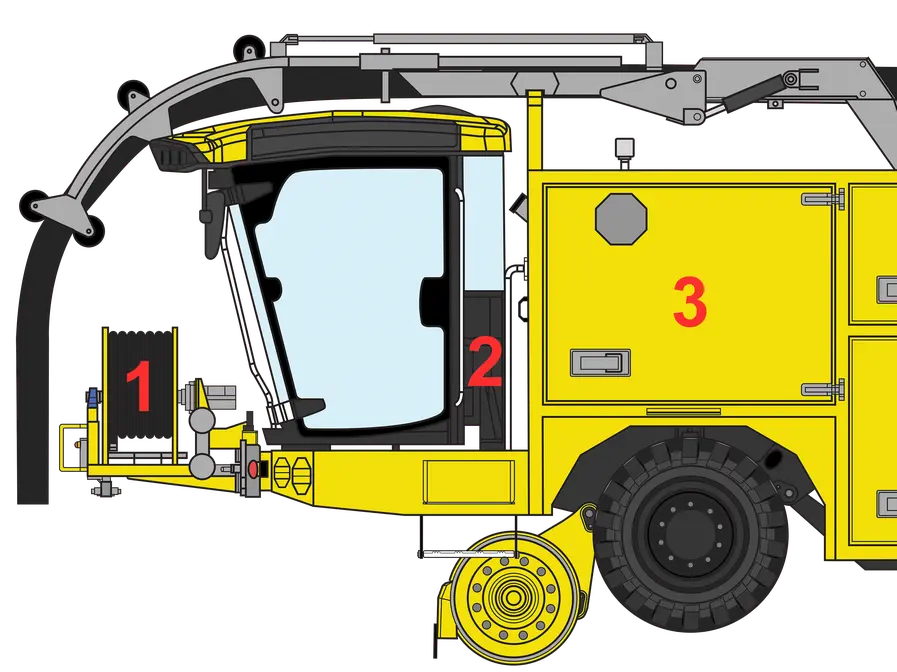

1. Auto Refuelling System
2. 50 HP Diesel Emergency Recovery Engine
3. 28 GPM @ 2000 PSI Jetting Capability
4.
5000 CFM Air Moving Suction
5. 4500 kg Water Carrying
6. 4500 kg Debris Tank
Compliance
Allan J Hargreaves Plant Engineers Ltd (AJH) ensures that all its road-rail vehicles are fully customisable and certified for rail use in compliance with UK, Irish, or EU regulations. Founded in 1983, AJH specialises in the design, manufacture, upgrade, and maintenance of rail-road machinery and associated equipment, adhering to standards such as RIS-1530-PLT. This commitment ensures their machinery meets stringent industry standards, providing clients with reliable, compliant solutions for rail operations.
Engineering Conformance Certificate
At AJH, we have the facilities to carry out extensive machine testing, our skilled engineers are able to calibrate machines in order to ensure maximum safety whilst ensuring machine envelope requirements are met. We carry out ECC certification for your machines through our trusted partners and provide a seamless end-to-end service. We provide compliant works to RIS-1530-PLT, I-PLM-5001 (Standard for Irish Rail), BS EN 15746 and CE / UKCA Marking.
Machine Applications for the Rail Cyclone
The Rail Cyclone is a high‑performance suction, jetting and drainage Road‑Rail Vehicle engineered to deliver powerful, efficient and reliable service across rail maintenance, drainage clearance and environmental support operations. Its advanced vacuum system, high‑pressure jetting capability and robust rail‑ready design make it an essential asset for keeping rail infrastructure safe, clear and operational.
Rail Drainage Maintenance & Clearance
The Rail Cyclone is purpose‑built for maintaining and restoring drainage systems across the rail network, ensuring safe and stable track conditions.
- Culvert clearance — Removing silt, debris and blockages to restore water flow.
- Catchpit emptying — Efficient removal of accumulated waste to prevent flooding.
- Under‑track drainage cleaning — Clearing pipes and channels beneath the track formation.
- Flood prevention — Rapid response to water build‑up during adverse weather.
Its powerful suction and jetting systems ensure deep, effective cleaning even in heavily blocked or neglected drainage assets.
Environmental & Lineside Support
Beyond drainage, the Rail Cyclone provides vital environmental support across rail corridors.
- Debris removal — Clearing ballast contamination, vegetation waste and general lineside debris.
- Pollution control — Safe removal of contaminated materials or spill residues.
- Silt extraction — Removing silt from ditches, channels and watercourses.
- Vegetation management support — Assisting clearance teams by removing waste material.
This makes the Rail Cyclone a valuable asset for maintaining safe, clean and compliant rail environments.
Specialist Road‑Rail (RRV) Operations
Designed for seamless road‑to‑rail transition, the Rail Cyclone offers rapid deployment and flexible movement along the track.
- Rapid response drainage — Quickly addressing urgent blockages or flooding.
- Confined‑space operation — Ideal for tunnels, bridges and restricted access zones.
- Precision jetting — Controlled high‑pressure cleaning for sensitive infrastructure.
- Support for major works — Essential for drainage preparation during renewals and upgrades.
Its rail‑ready configuration ensures safe, compliant operation across all track environments.
System Capabilities & Multi‑Function Use
The Rail Cyclone’s integrated systems allow it to perform multiple roles across rail maintenance operations.
- High‑pressure jetting — Breaking down stubborn blockages and flushing drainage systems.
- Vacuum extraction — Removing solids, liquids and sludge with high efficiency.
- Tank storage — Secure containment of waste for safe transport and disposal.
- Remote operation — Allowing safe working in hazardous or confined areas.
This multi‑function capability makes the Rail Cyclone one of the most versatile drainage RRVs available.
Digital & Operational Integration
The Rail Cyclone can be equipped with modern digital systems to enhance operational oversight and fleet management.
- GPS tracking — Real‑time location monitoring across the rail network.
- Geo‑fencing — Controlled operational zones for safety and compliance.
- Telematics — Monitoring performance, utilisation and maintenance needs.
- Predictive maintenance — Reducing downtime and extending machine life.
These features support efficient fleet management and long‑term reliability.
Why the Rail Cyclone Stands Out
- Powerful suction and jetting capability
- Ideal for drainage, culvert and catchpit maintenance
- Rapid deployment and flexible on‑track movement
- Essential for flood prevention and environmental support
- Proven reliability across UK rail operations
- Multi‑function system for diverse maintenance tasks
The Rail Cyclone is your go‑to solution for drainage clearance, jetting and environmental support.
Speak to our team today for purchase options, technical specifications and bespoke build configurations.
