Telescopic Dipper

We have a solution for everything. Our telescopic dipper is ideal for tasks requiring additional reaching requirements over a standard machine.

Enquire Here


Engine Power
 100 kW / 148 HP @ 2000 RPM
Operating Weight
 20 T / 25.5 T / 28 T
Max Travelling Speed
 15 mph
Max Working Speed
 5 mph
Max Travelling Cant
 150 mm
Max Working Cant
 150 mm
Max Working Gradient
 01:25
Max Service Braked Towed Load
 80000 kg
Max On/Off Track Gradient
 01:25
Max On/Off Track Cant
 150 mm
May Work Under LIVE Overhead Lines
 YES
May Travel Under LIVE Overhead Lines
 YES
May On/Off Track Under Live OLE
 YES
May Travel On LIVE3 or 4 Rail Lines
 NO
May Be Used On Isolated 3 Or 4 Rail Systems
 YES
May Be Used Adjacent To Running Line
 YES

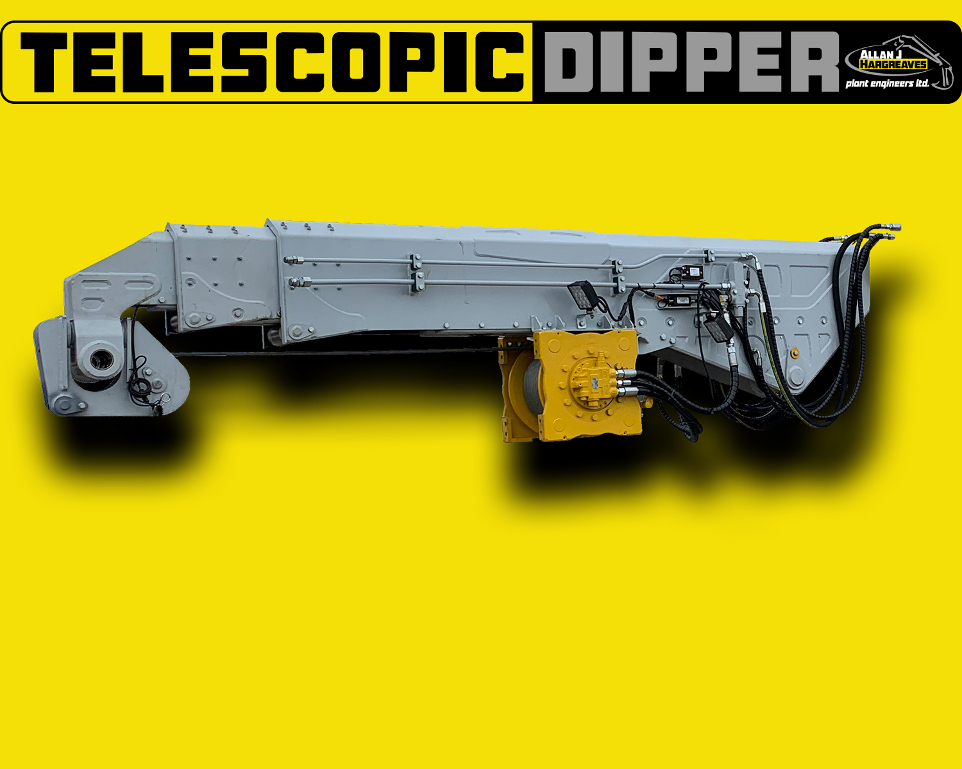

Telescopic Dipper

Our telescopic dipper is ideal for out of reach jobs where accessibility is difficult. Coming in various sizes the telescopic dipper comes in a variety of material grades depending on the lifting requirements. All additional lifting attachments come complete with LOLER certification ensuring safe lifting.

Winch

Our Telescopic dippers come with the option for an integrated winch complete with anti two block system. This particular setup was rated to 3T on the winch.
