Rail Warrior
Our Road Rail dumper is ideal for the transportation of materials to and from a work site where road access isn't available.

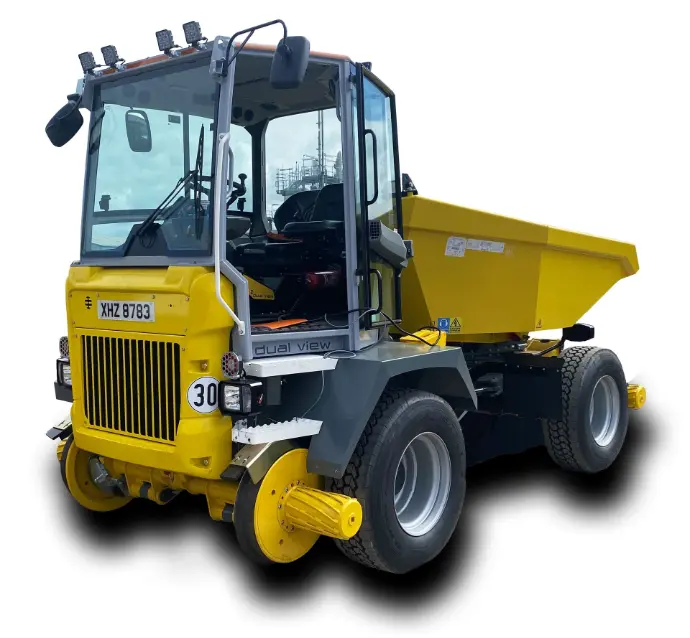

Rail Warrior
Our adapted Dual View Wacker Neuson Dumper has been converted with independently deployable rail axles, which can be built for UK and/or Irish rail. The Rail Dumper comes fully compliant with RIS-1530-PLT and Irish Rail standards, including ECC certification. The swivelling operator's seat gives the operator full 360-degree visibility. The hill-hold function automatically applies the brakes once the acceleration pedal is released, preventing the machine from rolling back when at a standstill. Fitted with an auto stop function, the Rail Dumper, along with reduced operating costs, is more Eco-friendly. In addition, extended maintenance intervals at 500 operating hours mean fewer servicing points and further cost savings.
Engine Power 74 HP / 55.4 kW
Operating Weight Empty 8 T / 8,000 kg
Full 12 T / 12,000 kg
Gauge Plant

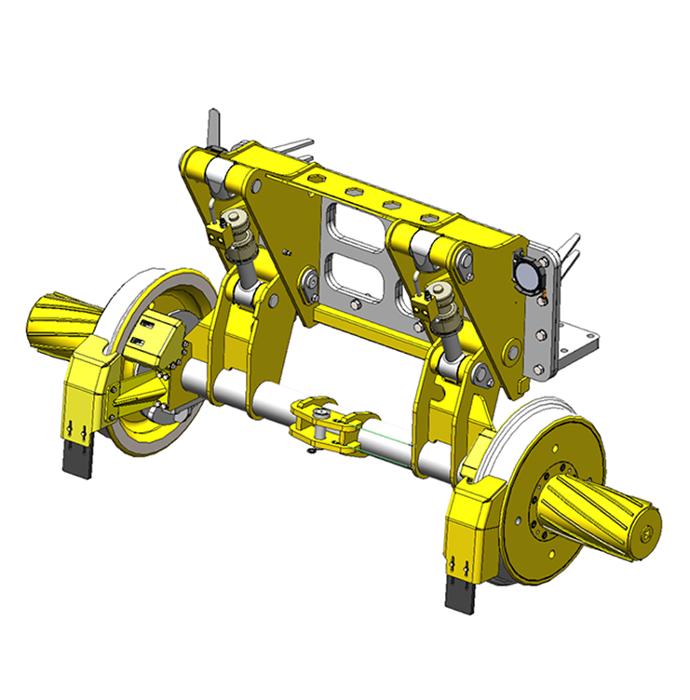

Friction Drive
The Rail Dumper is fitted with our friction drive rail axles, which are driven by the tyres. The axles have direct rail wheel braking integrated for optimum stopping performance via independent park and service brake callipers. The axles have been designed with maintenance tasks in mind, minimising servicing task durations and frequency.

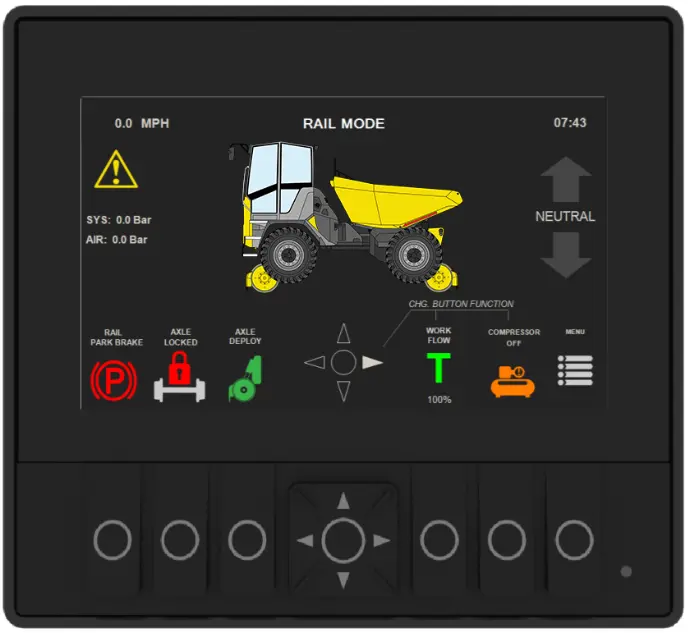

Control Systems
AJH's control system utilises an IFM visual display which can be programmed to control multiple features of the machine.
Work Modes
User-selectable modes allow tuning of the system when travelling, working or fine control is required.
Bucket Diverter
Allows the user to seamlessly control hydraulic diversion for different machine attachments.
Trailer Air Brake
The compressor and brake control system is seamlessly managed to ensure optimal performance and minimise power consumption when operating air-brake trailers.
Control Systems
Steering Locks
Our machines are fitted with a steering lock safety system to prevent the steering of the road axles when the rails are engaged, keeping the machine within gauge.
Rail Axle Deployment
Through the control system, the rail axles can be deployed individually for complete control.
Rail Axle Brake Test
For improved confidence, our safety system is available with a brake test function when working on rail (Only available for hydrostatic rail axles)

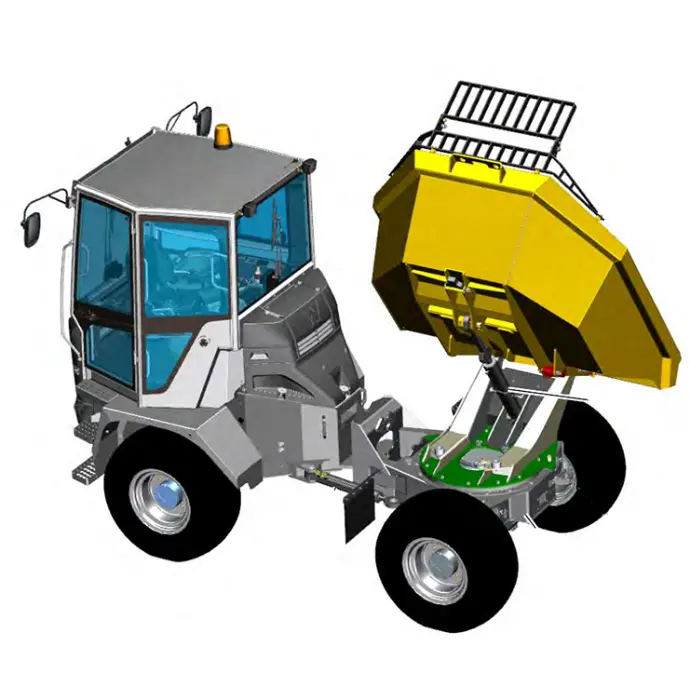

Swivel Skip
Unlike conventional dumpers, the Rail Dumper comes with a swivel skip for offloading materials trackside whilst still travelling on railway lines. Instead of tipping only forward, the swivel mechanism allows operators to place loads to the left or right—ideal for confined sites, trench backfilling, or working alongside obstacles. This sideways‑tipping action reduces manoeuvring, improves efficiency, and gives far greater control over material placement compared with a standard forward‑tip dumper.

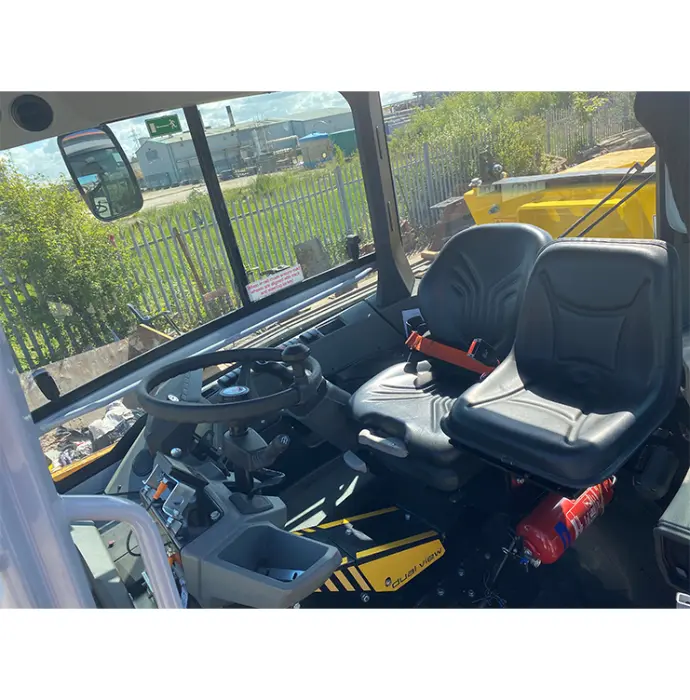

Cab Interior
The dual view cab is the Rail Dumpers key feature, with a optional second seat available. The rotational seating and controls means for improved versitility and efficiency. With an adjustable steering wheel, optional air-conditioning system and multiple storage options The Rail Dumper is equipped with many quality of life features, improving comfort for the operator.
Compliance
Allan J Hargreaves Plant Engineers Ltd (AJH) ensures that all its road-rail vehicles are fully customisable and certified for rail use in compliance with UK, Irish, or EU regulations. Founded in 1983, AJH specialises in the design, manufacture, upgrade, and maintenance of rail-road machinery and associated equipment, adhering to standards such as RIS-1530-PLT. This commitment ensures their machinery meets stringent industry standards, providing clients with reliable, compliant solutions for rail operations.
Engineering Conformance Certificate
At AJH, we have the facilities to carry out extensive machine testing, our skilled engineers are able to calibrate machines in order to ensure maximum safety whilst ensuring machine envelope requirements are met. We carry out ECC certification for your machines through our trusted partners and provide a seamless end-to-end service. We provide compliant works to RIS-1530-PLT, I-PLM-5001 (Standard for Irish Rail), BS EN 15746 and CE / UKCA Marking.
Machine Applications for the Rail Warrior
The Rail Warrior is a highly adaptable Dual View Wacker Neuson dumper engineered for safe, efficient and compliant operation across both UK and Irish rail networks. Its independently deployable rail axles, swivel skip, dual‑view cab and friction‑drive system make it a versatile solution for a wide range of rail‑side material handling and support tasks.
Rail Material Handling & Trackside Offloading
With its swivel skip, the Rail Warrior is ideal for worksites where precise material placement is essential. The sideways‑tipping mechanism allows operators to offload ballast, spoil or aggregates to the left or right while remaining on the track, reducing manoeuvring and improving efficiency in:
- Trackside offloading
- Trench backfilling
- Confined‑site material placement
This makes the machine particularly effective when working alongside obstacles, in narrow corridors or during formation and drainage works.
Rail Maintenance & Support Operations
The Rail Warrior’s compliant rail‑axle system and robust dumper platform make it well‑suited for day‑to‑day rail maintenance tasks, including:
- Ballast movement
- Spoil removal
- Component transport
- Drainage support
Its hill‑hold braking prevents rollback on gradients, improving safety during loading, unloading and movement along the track.
Road‑Rail Versatility & Safe Operation
The Rail Warrior’s independently deployable rail axles and friction‑drive system allow smooth, controlled movement on rail infrastructure. The axles feature direct rail‑wheel braking with independent park and service callipers, delivering strong stopping performance for:
- On‑track travel
- Gradient work
- Short‑distance shunting
The friction‑drive design also reduces maintenance time and frequency, supporting efficient fleet utilisation.
Operator‑Focused Worksite Efficiency
The Rail Warrior’s dual‑view cab enhances safety and productivity across all applications. Rotational seating and controls provide full 360‑degree visibility, ideal for:
- Confined‑space operation
- Trackside loading
- Precision manoeuvring
Optional air‑conditioning, adjustable steering and multiple storage options improve operator comfort during long shifts, while the auto‑stop function reduces fuel consumption and operating costs.
The Rail Warrior is available to purchase with complete configurability, including bespoke rail axles, swivel skip options and custom cab features.
Built to meet any rail standards, it can be tailored precisely to your operational needs. Contact us today to discuss purchase options and full custom build capabilities.
